Product Details
Application limits
※ Suction lift up to 9m
※ Max.liquid temperature 40℃
※ Max.ambienttemperature 40℃
※ Max.running pressure 4.5bar
※ Voltage fluctuations should not ±10% of rate value
※ Ph 6.5to 8.5
Performance range
※ Max.flow:6m³/h
※ Max.head:60m
Features
※ Power off without water
※ Not start frequently when tap water very small or leakage on the Pipeline Extend the service life of the pump
※ Jams and blocks protector
※ Built-in thermal protector
Component construction
|
Pump body: |
Cast iron,with brass/AlSI304 SS insert if request,reduces the risk of impeller seizure |
|
Pump support: |
Cast iron |
|
Motor housing: |
Aluminum |
|
Impeller: |
Brass |
|
Motor shaft: |
AISI420 SS,AISI304 SS if request |
|
Mechanical seal: |
Ceramic/Graphite |
|
Bearings: |
6201RZ/6201RZ(0.5HP), 6202 RZ/6202 RZ(0.75HP&1HP), |

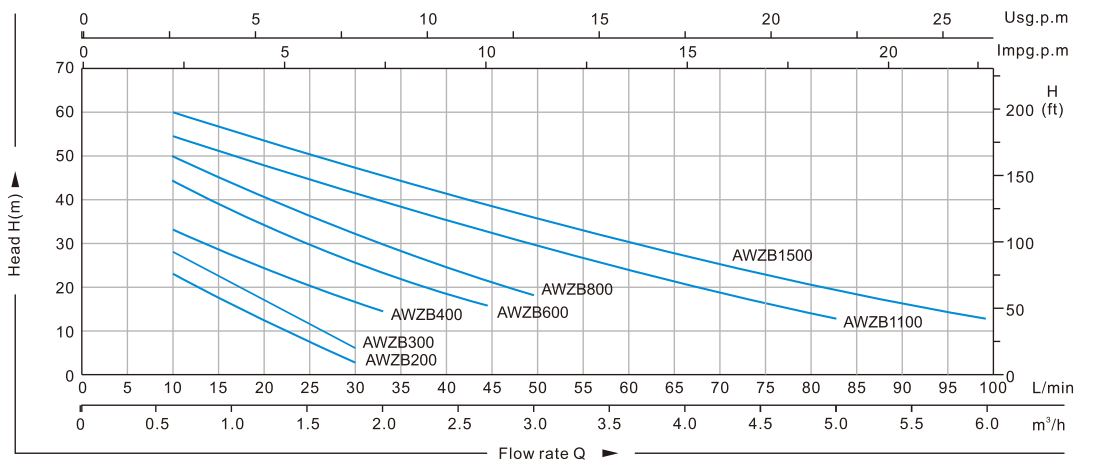

Performance data
|
50HZ n≈2850 r/min |
||||||
|
MODEL |
POWER |
Max.Flow |
Max.Head |
Max.suction |
Inlet/outlet |
|
|
Single-phase 220-240V |
KW |
HP |
||||
|
AWZB200 |
0.2 |
0.27 |
1.8 |
25 |
8 |
1"x1" |
|
AWZB300 |
0.3 |
0.4 |
1.8 |
30 |
8 |
1"x1" |
|
AWZB400 |
0.4 |
0.53 |
2.0 |
35 |
8 |
1"x1" |
|
AWZB600 |
0.6 |
0.8 |
2.7 |
45 |
8 |
1"x1" |
|
AWZB800 |
0.8 |
1.1 |
3.0 |
50 |
8 |
1"x1" |
|
AWZB1100 |
1.1 |
1.5 |
5.0 |
54 |
8 |
1.5"x1.5" |
|
AWZB1500 |
1.5 |
2.0 |
6.0 |
60 |
8 |
1.5"x1.5" |
|
Note:The length of single phase pump cable is 1m,Europe plug;three-phase pump no plug. |
||||||
