Product Details
Application limits
※ Suction lift up to 8m
※ Fluid temperature up to 40℃
※ Maximum ambient temperature 40℃

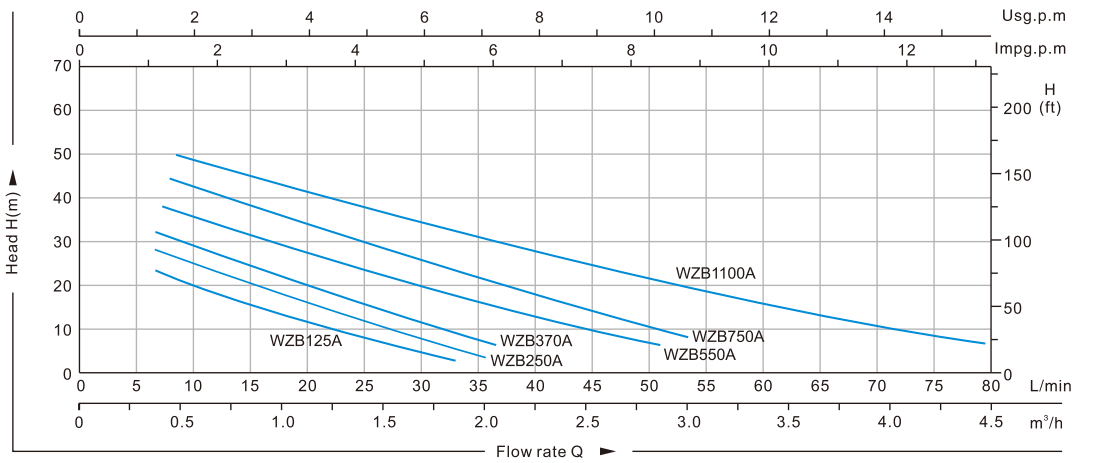

Performance range
※ Max.flow :4.5m³/h
※ Max.head:50m
Features
※ Self-priming pump
※ Bulid-in one-way valve
※ Add the impeller axial direction contact surface
Component construction
|
Pump body: |
Cast iron,with brass/AISI304 SS insert if request,reduces the risk of impeller seizure |
|
Pump support: |
Castiron |
|
Motor housing |
Aluminum |
|
Impeller: |
Brass |
|
Motor shaft: |
Carbon steel,AlSI304 SS if request |
|
Mechanical seal: |
Ceramic/Graphite |
|
Bearings: |
6201RZ/6201RZ(0.5HP),6202 RZ/6202 RZ(0.75HP&1HP),6203 RZ/6203 RZ(1.5HP) |
Performance data
|
50HZ n≈2850 r/min |
||||||
|
MODEL |
POWER |
Max.Flow |
Max.head |
Max.Suction |
Inlet/outlet |
|
|
Single-phase 220-240V |
KW |
HP |
||||
|
WZB125A |
0.125 |
0.16 |
1.8 |
24 |
8 |
1"x1" |
|
WZB250A |
0.25 |
0.3 |
2.0 |
28 |
8 |
1"x1" |
|
WZB370A |
0.37 |
0.5 |
2.1 |
32 |
8 |
1"x1" |
|
WZB550A |
0.55 |
0.75 |
2.8 |
38 |
8 |
1"x1" |
|
WZB750A |
0.75 |
1 |
3.0 |
44 |
8 |
1"x1" |
|
WZB1100A |
1.1 |
1.5 |
4.5 |
50 |
8 |
1.5"x1.5" |
|
Note:The length of single phase pump cable is 1m,Europe plug;three-phase pump no plug. |
||||||
