Product Details
Application limits
※ Suction head up to 8m
※ Liquid temperature up to +40℃
※ Ambient temperature up to +40℃
※ Max.Working pressure:6bar
※ Voltage flutuation should not exceed 10% of rared value
※ PH:6.5 to 8.5
Performance range
※ Max.flow:3.9m³/h
※ Max.head:50m
Features
※ Self-priming pump
※ Bulid-in one-Wayvalve
※ Add the impeller axial directioncontact surface
Component construction
|
Pump body: |
Cast iron,with brass/AISI304 SS insert if request,reduces the risk of impeller seizure |
|
Pump support: |
Castiron |
|
Motor housing |
Aluminum |
|
Impeller |
Brass |
|
Motor shaft: |
Carbon steel,AlSI304 SS if request |
|
Mechanical seal: |
Ceramic/Graphite |
|
Bearings: |
6201RZ/6201RZ(0.5HP),6202 RZ/6202 RZ(0.75HP&1HP) |

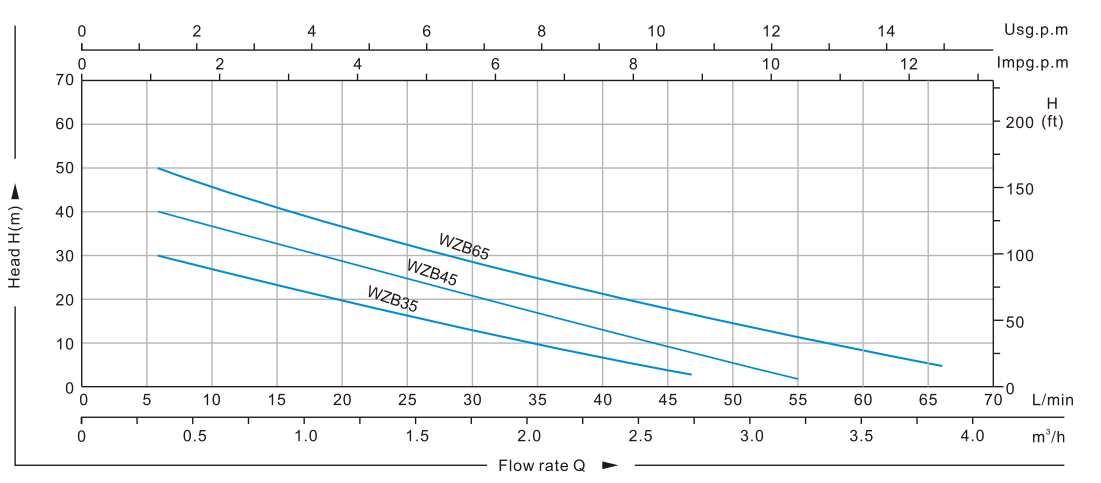

Performance data
|
50HZ n≈2850 r/min |
||||||
|
MODEL |
POWER |
Max.Flow |
Max.Head |
Max.suction |
Inlet/outlet |
|
|
Single-phase 220-240V |
KW |
HP |
||||
|
WZB35 |
0.37 |
0.5 |
2.7 |
30 |
8 |
1"x1" |
|
WZB45 |
0.5 |
0.75 |
3.3 |
40 |
8 |
1"x1" |
|
WZB65 |
0.75 |
1 |
3.9 |
50 |
8 |
1"x1" |
|
Note:The length of single phase pump cable is 1m,Europe plug;three-phase pump no plug. |
||||||
