Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The self-priming jet pumps are designed to pump water even the air is exit.They are recommended for using in domestic applications such as the distribution of water in combination with small or medium sized pressure sets,also for the irrigation of gardens etc.The pump should be installed in an enclosed environment,or atleast sheltered from inclement weather
Motor
※ Two-pole induction motor(n=2850r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector forsingle phase
※ Single-phase 220V/50Hz,60Hz if request
Three-phase 380V/50Hz,60Hz if request
Operating conditions
※ Liquidtemperatureup to 60℃
※ Ambient temperature up to 40℃
※ Total suctionlift up to 8m
Component construction
|
Pump body: |
Cast iron |
|
Pump support: |
Cast iron |
|
Motor housing: |
Aluminum |
|
Impeller: |
Brass |
|
Diffuser |
Noryl |
|
Motor shaft: |
AISI420 SS,AISI304 SS if request |
|
Mechanical seal: |
Ceramic/Graphite |
|
Bearings: |
6201RZ/6201RZ(0.5HP), 6202 RZ/6202 RZ(0.75HP&1HP),6203RZ/6203 RZ(1.5HP&2HP) |

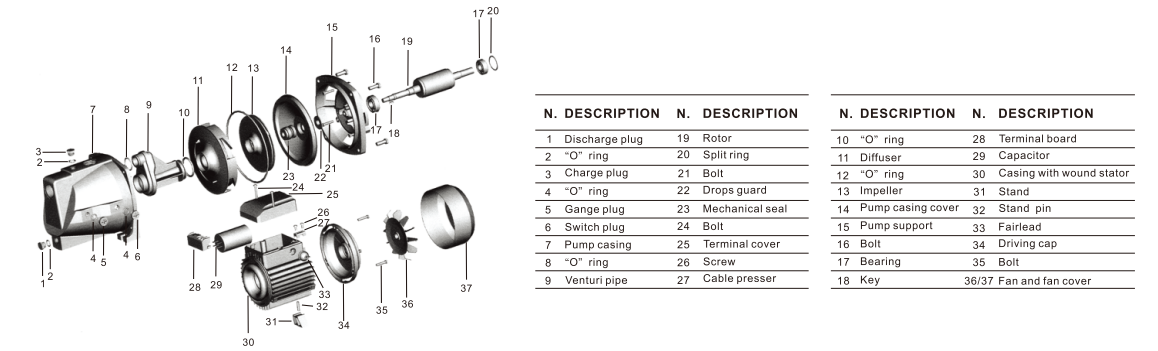

Explode drawing

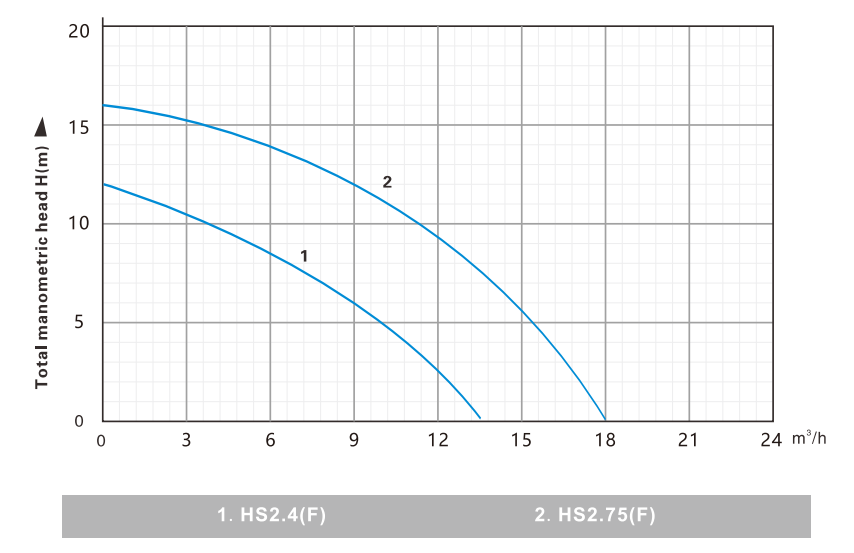

Performance chart at n=2850rpm
Technical parameters
|
MODEL |
POWER |
Q(m³/h) |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3 |
3.6 |
16.8 |
19.2 |
21.6 |
24.0 |
|
|
kW |
HP |
Q(l/min) |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
280 |
320 |
360 |
400 |
|
|
JET-60 |
0.37 |
0.5 |
H |
35 |
28 |
20 |
14 |
10 |
|
|
|
|
|
|
|
JET-80 |
0.55 |
0.75 |
48 |
39 |
31 |
25 |
20 |
|
|
|
|
|
|
|
|
JET-100 |
0.75 |
1 |
53 |
43.5 |
35.5 |
30 |
24 |
|
|
|
|
|
|
|
|
JET-150 |
0.9 |
1.2 |
56 |
52 |
46 |
41 |
37 |
34 |
32 |
|
|
|
|
|
|
JET-180 |
1.1 |
1.5 |
61 |
57 |
51 |
46 |
42 |
38.5 |
36 |
|
|
|
|
|
|
JET-200 |
1.5 |
2 |
66 |
61 |
55 |
50 |
46 |
43 |
40.5 |
|
|
|
|
|
