MHF(m) SERIES

Product Details

Performance range

※ Max.flow:129m³/h

※ Max.head:22m


Application limits

※ Liquid temperature up to 40℃

※ Ambient temperature up to 40℃

※ Total suction lift up to 8m


Features

※ Large flow,high efficiency

※ Compact structure,easy to install


Component construction

  Pump body:

Cast iron,AlSl304 SS for HCT

Bearings:

6201 R2/6201RZ(0.5HP)
6202 R2/6202 R2(0.75HP&IHP)
6204 R2/6204 RZ(1.5HP&2HP)
6204R2/6304RZ(3HP)

  Pump support:

Castiron,Aluminum for CPM 2&HCT18S/20S/26S

  Motor housing:

Aluminum

  Impeller:

Brass,AlS1304 SS for HCT

  Motor shaft:

Carbon steel,AlS1420/304 SS if request

  Mechanical seal:

Ceramic/Graphite

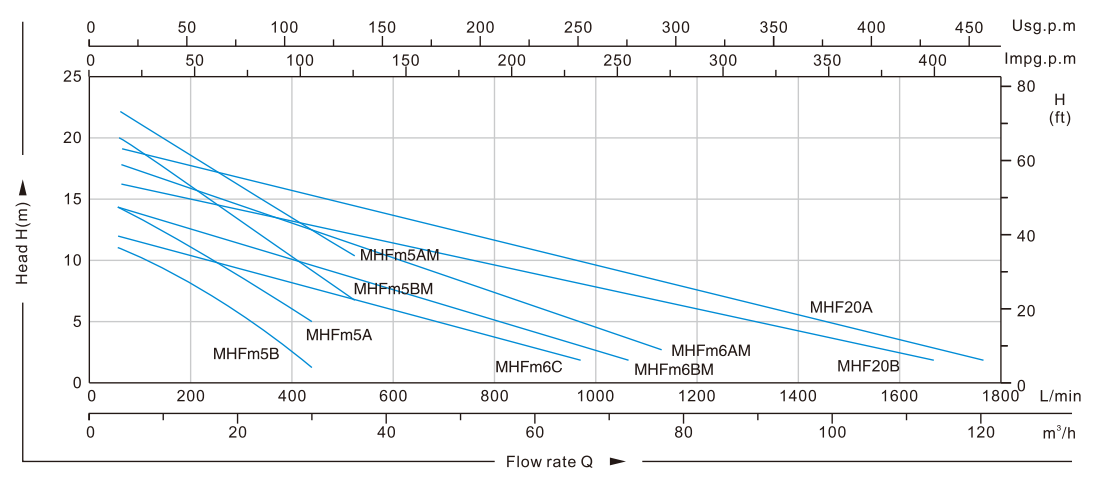

Performance data

50HZ   n≈2850    r/min

MODEL

 POWER

Max.Flow
(m³/h)

Max.Head
(m)

Max.suction
(m)

Inlet/outlet
(inch)

Single-phase
220-240V

Three-phase
380-415V

KW

HP

MHFm5B

-

0.75

1.0

30

11

8

2"x2"

MHFm5A

-

1.1

1.5

30

14

8

2"x2"

MHFm5BM

-

1.1

1.5

36

20

8

2"x2"

MHFm5AM

MHF5AM

1.5

2.0

36

22

8

2"x2"

MHFm6C

-

1.1

1.5

66

12

8

3"x3"

MHFm6BM

MHF6BM

1.5

2.0

72

14

8

3"x3"

MHFm6AM

MHF6AM

2.2

3.0

78

18

8

3"x3"

-

MHF20B

3.0

4.0

114

16.5

8

4"x4"

-

MHF20A

4.0

5.5

129

19.5

8

4"x4"

Note:The length of single phase pump cable is 0.3m,no plug.
