Product Details

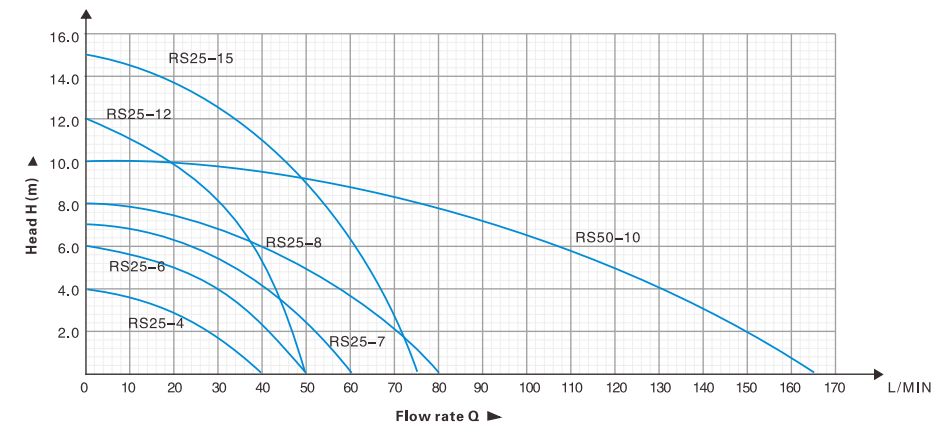

Performance chart
Technical parameters
|
MODEL |
PIPE SIZE |
POWER |
MAX-FLOW |
MAX-HEAD |
|
(W) |
(L/MIN) |
(M) |
||
|
RS15-4G |
G3/4".DN12MM |
65/46/30 |
30 |
4 |
|
RS15-4B |
G3/4",DN12MM |
65/46/30 |
30 |
4 |
|
RS25-4G |
G1",DN20MM |
65/46/30 |
40 |
4 |
|
RS25-4B |
G1",DN20MM |
65/46/30 |
40 |
4 |
|
RS40-4G |
G11/2",DN25MM |
85/63/40 |
50 |
4 |
|
RS15-6G |
G3/4",DN12MM |
100/67/46 |
40 |
6 |
|
RS15-6B |
G3/4",DN12MM |
100/67/46 |
40 |
6 |
|
RS25-6G |
G1",DN20MM |
100/67/46 |
50 |
6 |
|
RS25-6B |
G1",DN20MM |
100/67/46 |
50 |
6 |
|
RS40-6G |
G11/2",DN25MM |
100/67/46 |
60 |
6 |
|
RS40-6B |
G11/2",DN25MM |
100/67/46 |
60 |
6 |
|
RS25-7G |
G1",DN20MM |
120/80/50 |
60 |
7 |
|
RS40-7G |
G11/2",DN25MM |
120/80/50 |
75 |
7 |
|
RS25-8G |
G1",DN20MM |
160/130/108 |
80 |
8 |
|
RS40-8G |
G11/2",DN25MM |
160/130/108 |
95 |
8 |
|
RS25-12G |
G1",DN20MM |
265/230/150 |
50 |
12 |
|
RS50-9G |
G2",DN32MM |
265/230/150 |
150 |
9 |
|
RS25-15WB |
G1",DN20MM |
300/250/200 |
75 |
15 |
|
RS25-15B |
G1",DN20MM |
300/250/200 |
75 |
15 |
|
RS50-10G |
G2",DN32MM |
300/250/200 |
165 |
10 |
