2SGPM SERIES

Product Details

Performance Range

※ Flow rate up to 12m³/h

※ Head up to 50m


Application limits

※ Suction head up to 8m

※ Liquid temperature up to +40℃

※ Ambient temperature up to +40℃

※ Max.working pressure:5bar

※ Vlotage fluctuation should not

※ Exceed 10% of rated walue

※ Ph:6.5 to 8.5


Features

※ Double impeller centrifugal pump,satisfies the requirement of high head.

※ Compact structure


Component Construction

  Pump body:

  Cas tiron

Bearings:

  6202 RZ/6202 RZ
  6204 RZ/6204 RZ

  Pump support:

  Cas tiron

  Motor housing:

  Aluminum

  Impeller:

  Brass

  Motor shaft:

  Carbon steel,AlS1420/304 SS if request

  Mechanical seal:

  Ceramic/Graphite

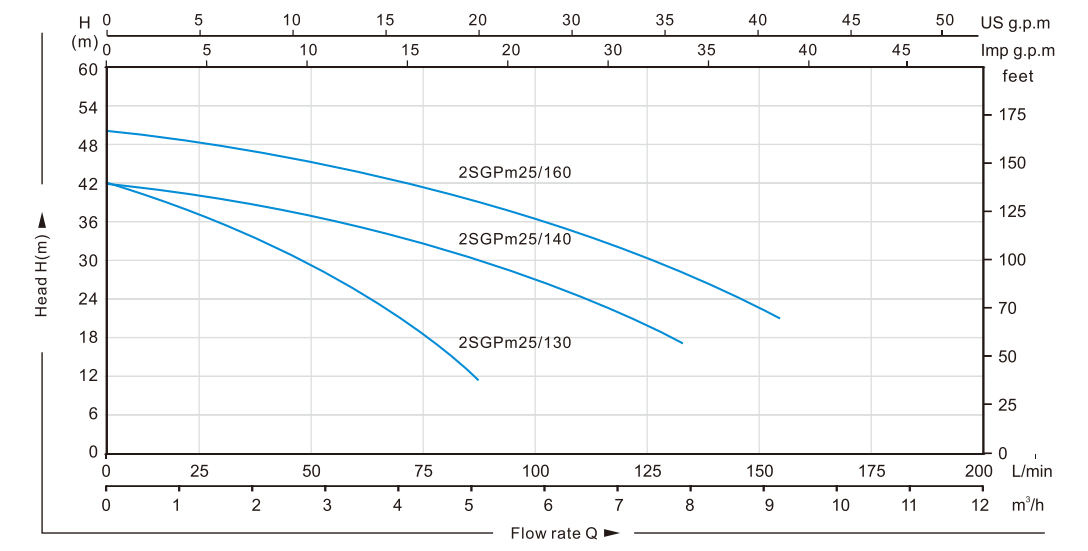

Performance data

50HZ   n≈2850   r/min

MODEL

POWER

Max.Flow
(m/h)

Max.Head
(m)

Max.suction
(m)

Inlet/outlet
(inch)

Single-phase 220-240V

KW

HP

2SGPm25/130

0.75

1

6

42

8

1.25"x1"

2SGPm25/140

1.1

1.5

10.2

42

8

1.5"x1"

2SGPm25/160

1.5

2

12

50

8

1.5"x1"

Note:The length of single phase pump cable is 1m,Europe plug;three-phase pump no plug.
