NF SERIES

Product Details

Performance range

※ Max.flow :81m³/h

※ Max.head:21m


Application limits

※ Liquid temperature up to 40℃

※ Ambient temperature up to 40℃

※ Total suction lift up to 8m


Features

※ Standard flange centrifugal pump

※ Large flow,high efficiency


Component construction

  Pump body:

  Cas tiron

Bearings:

  6202 RZ/6202RZ(NF-128A)
  6204 RZ/6204 RZ(NF-129B/129A/130C/130B)
  6205 RZ/6304RZ(NF-130A)
  6205 RZ/6206 RZ(NF 131B/131A)

  Pump support:

  Cas tiron

  Motor housing:

  Aluminum

  Impeller:

  Brass

  Motor shaft:

  Carbon steel,AlSl420/304 SS if request

  Mechanical seal:

  Ceramic/Graphite

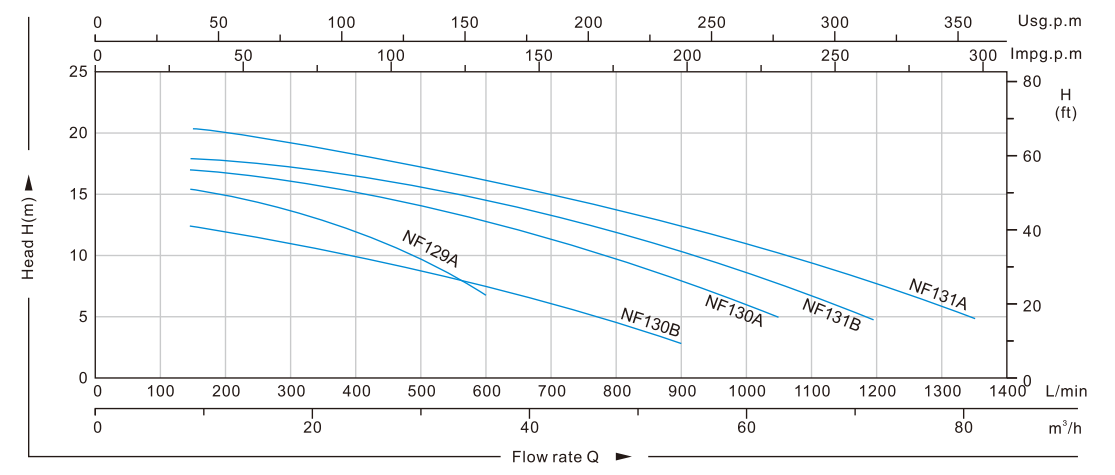

Performance data

50HZ  n≈2850 r/min

MODEL

POWER

Max.Flow
(m/h)

Max.Head
(m)

Max.suction
(m)

Inlet/outlet
(inch)

Three-phase 380-415V

KW

HP

NF129A

1.5

2

36

17

8

2"x2"

NF130B

1.5

2

54

13.5

8

3"x3"

NF130A

2.2

3

63

18

8

3"x3"

NF131B

3

4

72

19

8

3"x3"

NF131A

4

5.5

81

21

8

3"x3"

Note:The length of single phase pump cable is 0.3m,no plug.
