Product Details
Performance range
※ Max.flow:8.4m³/h
※ Max.head:45m
Application limits
※ Suction lift up to 9m
※ Fluid temperature up to 40℃
※ Maximum ambient temperature 40℃
Features
※ Single suction centrifuagl pump
※ Copper impeller,stable performance
※ High head,small flow rate
Component construction
|
Pump body: |
Castiron |
Bearings |
6201 R2/6201 RZ(0.5HP)
6202 R2/6202 R2(0.75HP&IHP)
6204 R2/6204 RZ(1.5HP&2HP)
6204 R2/6304 RZ(3HP)
|
|
Pump support: |
Cast iron |
||
|
Motor housing: |
Aluminum |
||
|
Impeller: |
Brass |
||
|
Motor shaft: |
Carbon steel,AlS1420/304 SS if request |
||
|
Mechanical seal: |
Ceramic/Graphite |
||

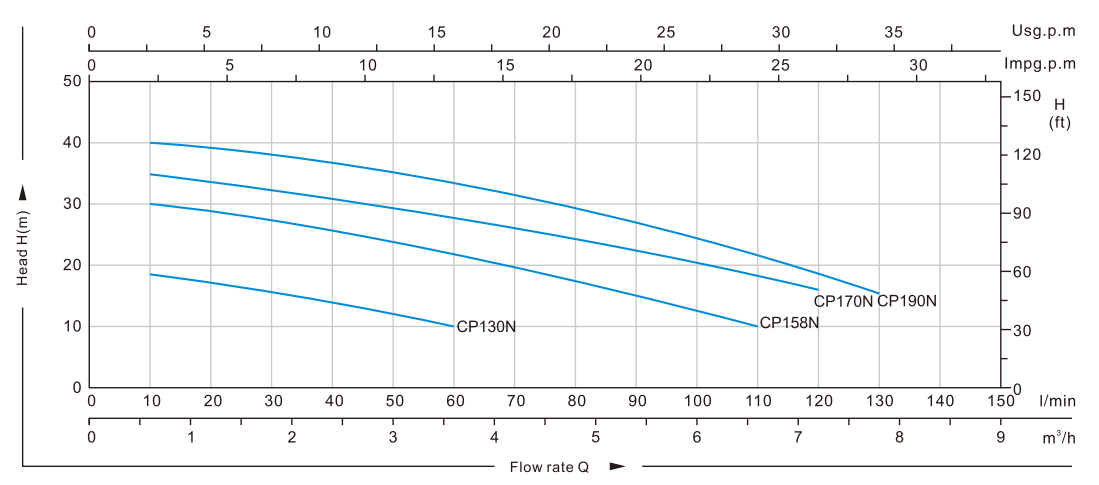

Performance data
|
50HZ n≈2850 r/min |
||||||
|
Model |
POWER |
Max.Flow |
Max.Head |
Max.suction |
Inlet/outlet |
|
|
Single-phase |
KW |
HP |
||||
|
CP130N |
0.37 |
0.5 |
4.8 |
20 |
9 |
1"x1" |
|
CP158N |
0.75 |
1 |
7.2 |
35 |
9 |
1"x1" |
|
CP170N |
1.1 |
1.5 |
7.8 |
42 |
9 |
1.25"x1" |
|
CP190N |
1.5 |
2 |
8.4 |
45 |
9 |
1.25"x1" |
|
Note:The length of single phase pump cable is 1m,Europe plug;three-phase pump no plug. |
||||||
