Product Details
Performance range
※ Max.flow :8.4m³/h
※ Max.head:55m
Application limits
※ Suction lift up to 7m
※ Fluid temperature up to 40℃
※ Maximum ambient temperature 40℃
Features
※ Single suction centrifuagl pump
※ Copper impeller,stable performance
※ High head,small flow rate
Component construction
|
Pump body: |
Cast iron |
Bearings |
6201 R2/6201 RZ(0.5HP), |
|
Pump support: |
Cast iron |
||
|
Motor housing: |
Aluminum |
||
|
Impeller: |
Brass |
||
|
Motor shaft: |
Carbon steel,AlS1420/304 SS if request |
||
|
Mechanical seal: |
Ceramic/Graphite |
||

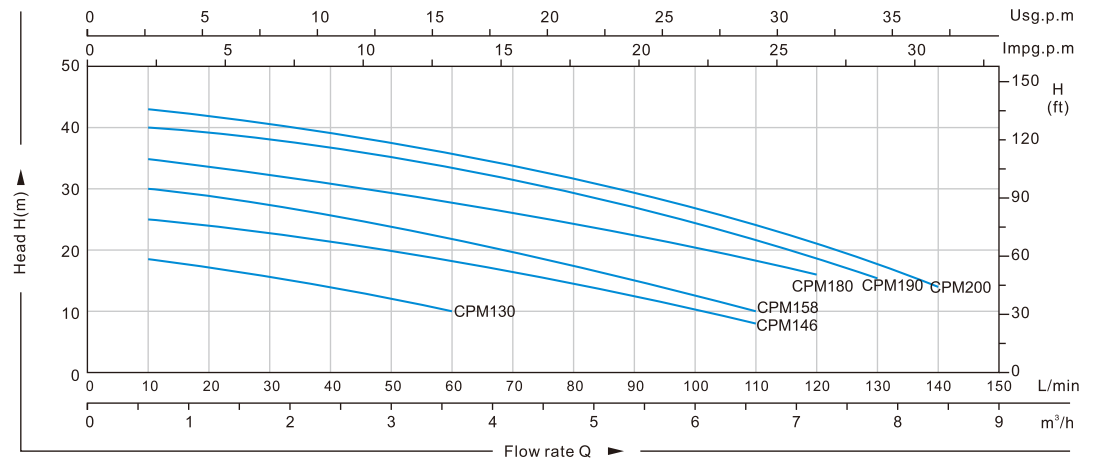

Performance data
|
50HZ n≈2850 r/min |
||||||
|
MODEL |
POWER |
Max.Flow |
Max.Head |
Max.suction |
Inlet/outlet |
|
|
Single-phase |
KW |
HP |
||||
|
CPM130 |
0.37 |
0.5 |
6 |
22 |
7 |
1"x1" |
|
CPM146 |
0.55 |
0.75 |
6.6 |
26 |
7 |
1"x1" |
|
CPM158 |
0.75 |
1 |
7.2 |
32 |
7 |
1"x1" |
|
CPM180 |
1.1 |
1.5 |
7.8 |
40 |
7 |
1.25"x1" |
|
CPM190 |
1.5 |
2 |
7.8 |
48 |
7 |
1"x1" |
|
CPM200 |
2.2 |
3 |
8.4 |
55 |
7 |
1"x1" |
|
Note:The length of single phase pump cable is 1m,Europe plug;three-phase pump no plug. |
||||||
