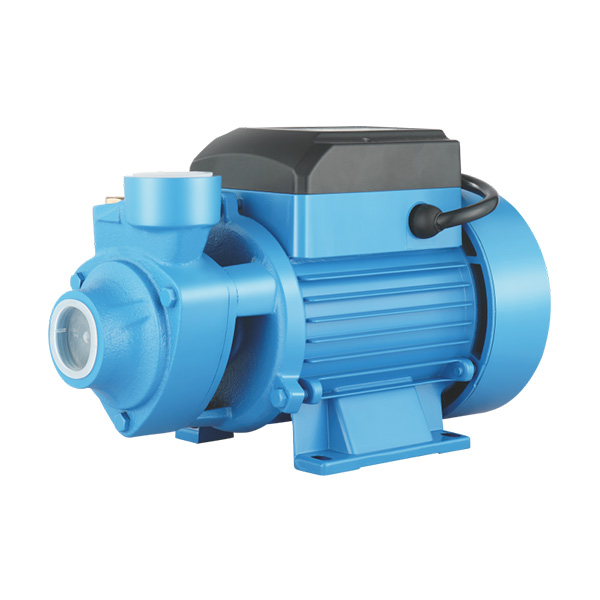

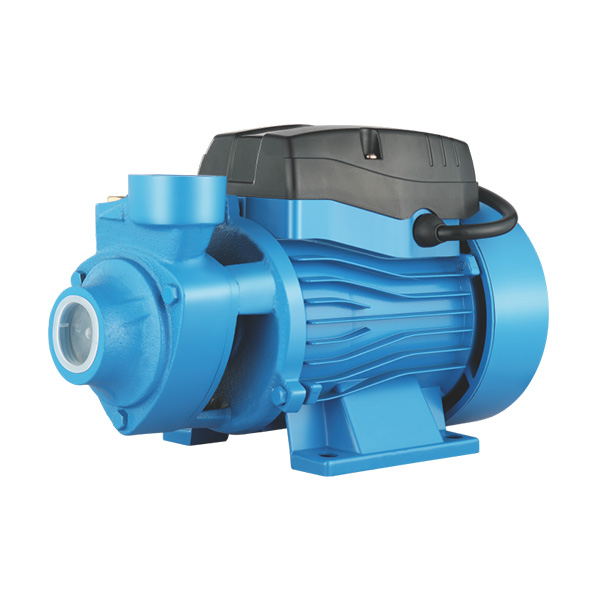

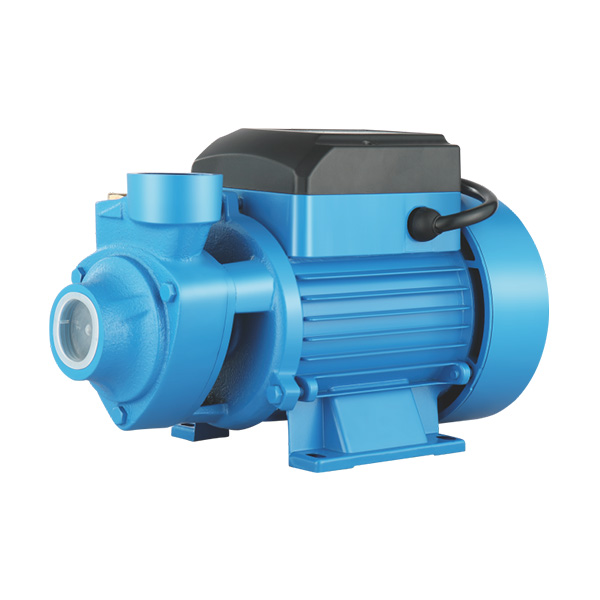

Peripheral pump has high pressure with peripheral structure.Small size,light weight make this series pumps are economical for domestic using.
Suitable for pumping clean water which are not chemically aggressive to the pump components,and should be installed in an enclosed environment,at least sheltered from inclementweather.
Motor
※Two-pole induction motor(n=2850r.p.m)
※InsulationClassB
※ProtectionIP44
※Continuous service S1
※Thermal protector
※Single-phase 220V/50Hz,60Hzif request
Operating conditions
※ Liquidtemperature upto 60℃
※ Ambienttemperature up to40℃
※ Total suction lift up to 8m
Component construction
|
※ Pump boby： |
Cast iron,with brass/AlSl 304 SS insert if request,reduces the risk of impeller seizure |
|
※ Pump support: |
Castiron,with brass/AlSI 304 SS insertif request,reduces the risk of impeller seizure |
|
※ Motor housing: |
Aluminum,Sheet steel for Cp130 |
|
※ Impeller: |
Brass |
|
※ Motor shaft: |
Carbon steel,AlSI 420/304 SS if request |
|
※ Mechanical seal: |
Ceramic/Graphite |
|
※ Bearings: |
6201RZ/6201 RZ(0.5HP,VP5M by ZZ),6202 RZ/6202 RZ(0.75HP&1HP) |

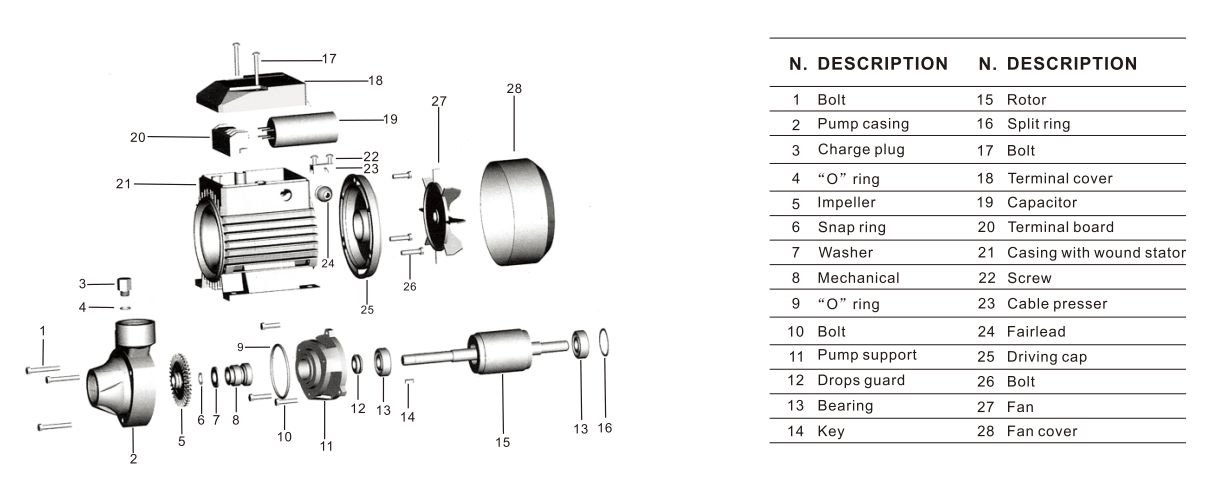

Explode drawing

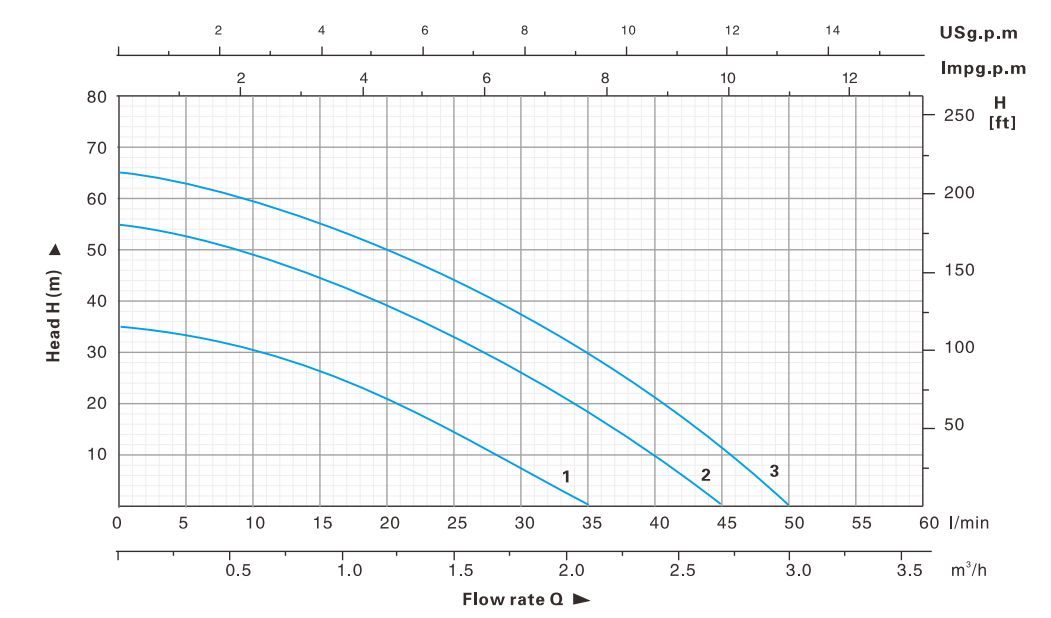

Performance chart at n=2850rpm
Technical parameters
|
MODEL |
POWER |
Q(m³/h) |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3 |
|
|
kw |
HP |
Q(l/min) |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
QB60 |
0.37 |
0.5 |
H |
35 |
30 |
25 |
20 |
15 |
10.5 |
6.5 |
3 |
|
|
|
|
QB70 |
0.55 |
0.75 |
55 |
49 |
43 |
37 |
30 |
23 |
17 |
12 |
8 |
5 |
|
|
|
QB80 |
0.75 |
1 |
65 |
59 |
52 |
45 |
38 |
31 |
25 |
19 |
14 |
10 |
7 |
|
