Product Details
Applications
※ For water supply from wells or reservoirs
※ For domestic use,for civil and industrial applications
※ For garden and irrigation
Operating conditions
※ Maximum fluid temperature up to +40℃.
※ Maximum sand content:0.15%.
※ Maximum immersion:50m.
※ Minimum well diameter:4".
Motor and pump
※ Rewindable motor
※ Single-phase:220V-240V/50HZ
※ Three-phase:380V-415V/50HZ
※ Equip with start control box or digital auto-control box
※ Pumps are designed by casing stressed
※ Curve tolerance according to ISO 9906
Options on request
※ Special mechanical seal
※ Other voltages or frequency 60 HZ

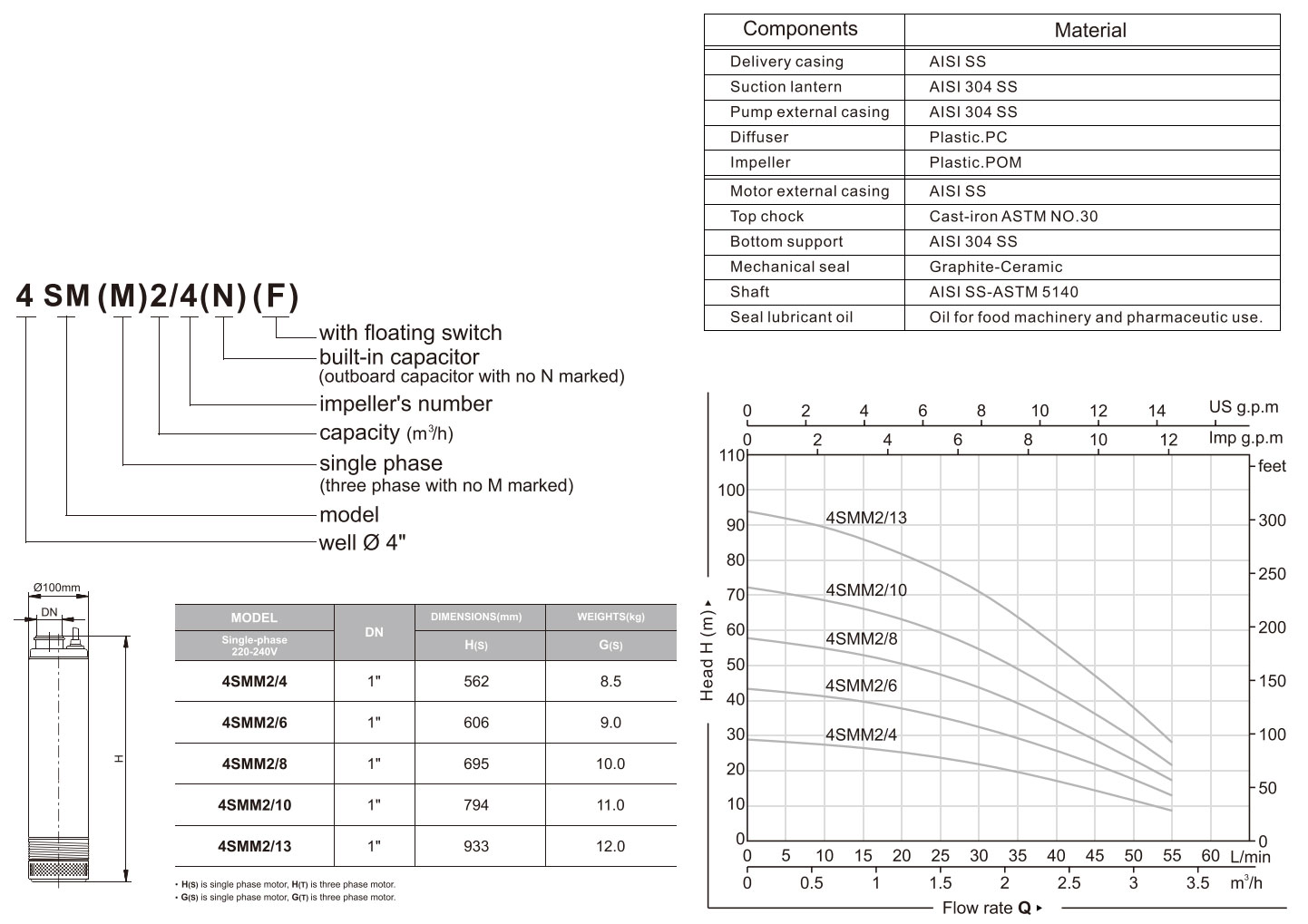

Performance data
|
50HZ n≈2850 r/min |
|||||||||||||||
|
MODEL |
POWER |
DELIVERY n≈2850 l/min |
|||||||||||||
|
Single-phase |
KW |
HP |
Q(m³/h) |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3.0 |
3.3 |
|
Q(l/min) |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
|||
|
4SMM2/4 |
0.25 |
0.33 |
H(m) |
29 |
28 |
27 |
26 |
25 |
24 |
22 |
19 |
17 |
14 |
12 |
9 |
|
4SMM2/6 |
0.37 |
0.5 |
43 |
42 |
41 |
40 |
37 |
36 |
33 |
29 |
25 |
22 |
18 |
13 |
|
|
4SMM2/8 |
0.55 |
0.75 |
58 |
57 |
55 |
53 |
50 |
47 |
44 |
39 |
34 |
29 |
23 |
17 |
|
|
4SMM2/10 |
0.75 |
1 |
72 |
71 |
68 |
66 |
62 |
59 |
55 |
48 |
42 |
36 |
29 |
22 |
|
|
4SMM2/13 |
1.1 |
1.5 |
94 |
92 |
89 |
86 |
81 |
77 |
71 |
63 |
55 |
47 |
38 |
28 |
|
