Product Details
Applications
※ For water supply from wells or reservoirs
※ For domestic use,for civil and industrial applications
※ For garden and irrigation
Motor and pump
※ Rewindable motor
※ Single-phase:220V-240V/50HZ
※ Three-phase:380V-415V/50HZ
※ Single phase motor with built-in capacitor
※ Curve tolerance according to ISO 9906
Options on request
※ Special mechanical seal
※ Other voltages or frequency 60 HZ
Operating conditions
※ Maximum fluid temperature up to +40℃.
※ Maximum sand content:3%.
※ Maximum immersion:50m.
※ Minimum well diameter:4".

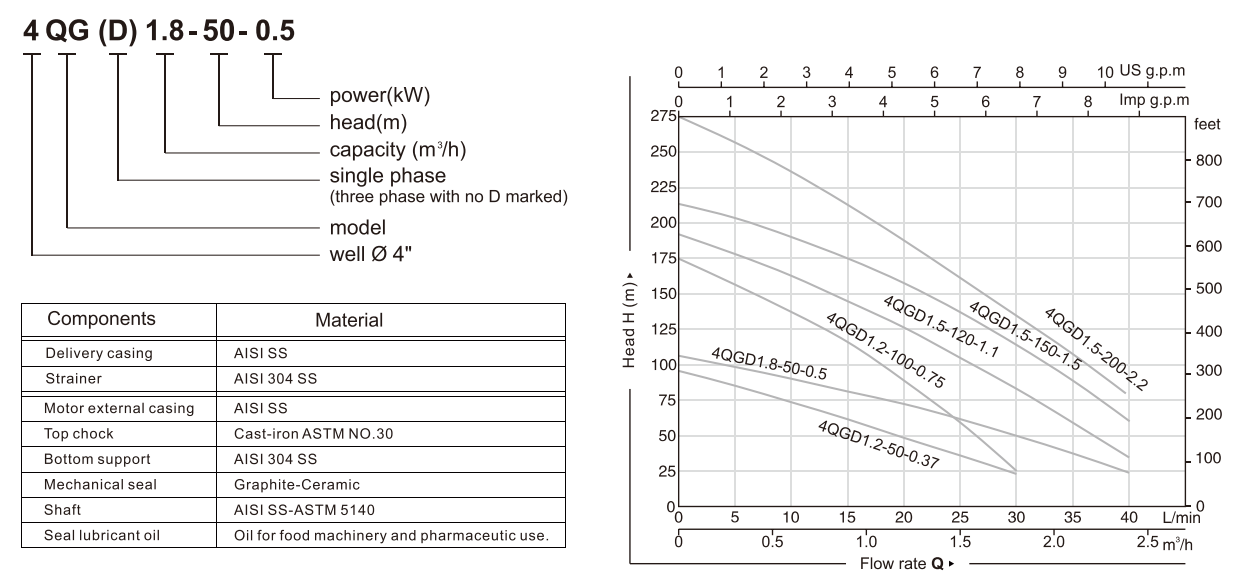

Performance data
50HZ n≈2850 r/min |
||||||||||||||
MODEL |
POWER |
DN |
DELIVERY |
|||||||||||
Single-phase |
Three-phase |
KW |
HP |
inch |
Q(m³/h) |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
Q(l/min) |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
|||||
4QGD1.2-50-0.37 |
- |
0.37 |
0.5 |
1" |
H(m) |
95 |
83 |
72 |
60 |
48 |
35 |
22 |
- |
- |
4QGD1.8-50-0.5 |
- |
0.5 |
0.7 |
1" |
107 |
95 |
86 |
81 |
71 |
61 |
50 |
36 |
23 |
|
4QGD1.2-100-0.75 |
4QG1.2-100-0.75 |
0.75 |
1 |
1" |
175 |
154 |
138 |
115 |
90 |
56 |
25 |
- |
- |
|
4QGD1.5-120-1.1 |
4QG1.5-120-1.1 |
1.1 |
1.5 |
1" |
190 |
177 |
163 |
147 |
128 |
107 |
84 |
58 |
30 |
|
4QGD1.5-150-1.5 |
4QG1.5-150-1.5 |
1.5 |
2 |
1" |
210 |
207 |
193 |
177 |
158 |
137 |
114 |
88 |
60 |
|
4QGD1.5-200-2.2 |
4QG1.5-200-2.2 |
2.2 |
3 |
4 |
280 |
267 |
223 |
207 |
178 |
157 |
134 |
108 |
80 |
