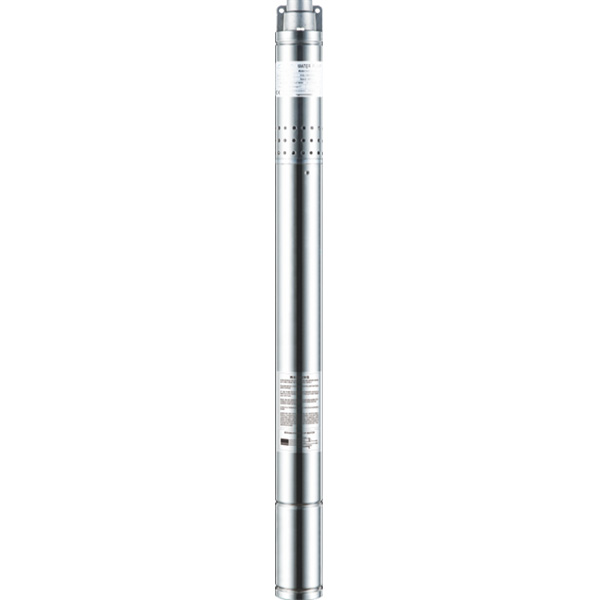

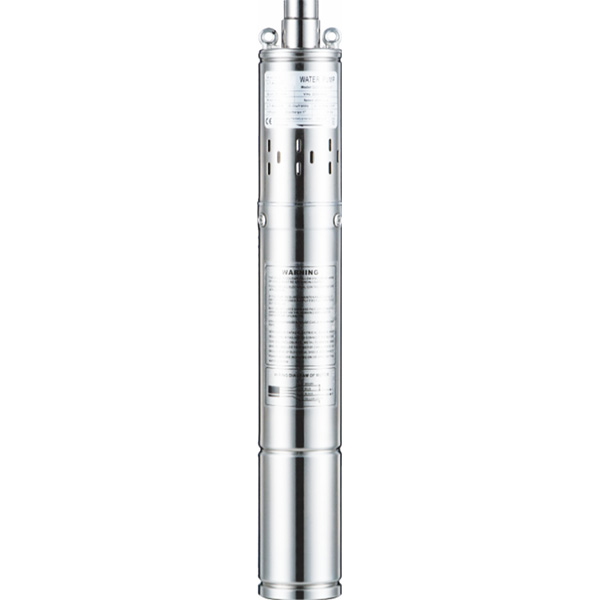

Product Details
Applications
※ For water supply from wells or reservoirs
※ For domestic use,for civil and industrial applications
※ For garden and irrigation
Motor and pump
※ Rewindable motor
※ Single-phase:220V-240V/50HZ
※ Three-phase:380V-415V/50HZ
※ Single phase motor with built-in capacitor
※ Curve tolerance according to ISO 9906
Options on request
※ Special mechanical seal
※ Other voltages or frequency 60 HZ
Operating conditions
※ Maximum fluid temperature up to +40℃.
※ Maximum sand content:3%.
※ Maximum immersion:50m.
※ Minimum well diameter:2"/3".

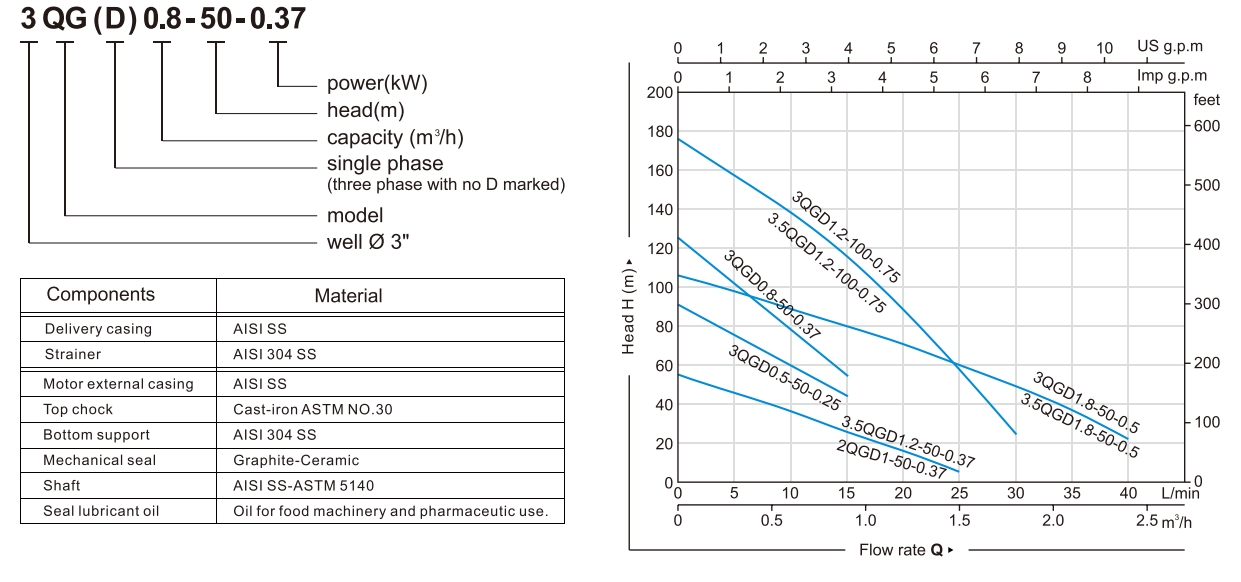

Performance data
|
50HZ n≈2850 r/min |
|||||||||||||
|
MODEL |
POWER |
DN |
DELIVERY |
||||||||||
|
Single-phase |
KW |
HP |
inch |
Q(m³/h) |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
|
Q(l/min) |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
||||
|
2QGD1-50-0.37 |
0.37 |
0.5 |
34" |
H(m) |
55 |
45 |
35 |
25 |
15 |
5 |
- |
- |
- |
|
2.5QGD1-45-0.37 |
0.37 |
0.5 |
1" |
80 |
70 |
57 |
46 |
33 |
21 |
9 |
- |
- |
|
|
2.5QGD1-70-0.55 |
0.55 |
0.75 |
1" |
100 |
90 |
74 |
58 |
45 |
28 |
13 |
- |
- |
|
|
3QGD0.5-50-0.25 |
0.25 |
0.37 |
1" |
90 |
80 |
70 |
45 |
- |
- |
- |
- |
- |
|
|
3QGD0.8-50-0.37 |
0.37 |
0.5 |
1" |
125 |
101 |
76 |
52 |
- |
- |
- |
- |
- |
|
|
3QGD1.8-50-0.5 |
0.5 |
0.7 |
1" |
107 |
95 |
86 |
81 |
71 |
61 |
50 |
36 |
23 |
|
|
3QGD1.2-100-0.75 |
0.75 |
1 |
1" |
175 |
154 |
138 |
115 |
90 |
56 |
25 |
- |
- |
|
|
3.5QGD1.2-50-0.37 |
0.37 |
0.5 |
1" |
55 |
45 |
35 |
25 |
15 |
5 |
- |
- |
- |
|
|
3.5QGD1.8-50-0.5 |
0.5 |
0.7 |
1" |
107 |
95 |
86 |
81 |
71 |
61 |
50 |
36 |
23 |
|
|
3.5QGD1.2-100-0.75 |
0.75 |
1 |
1" |
175 |
154 |
138 |
115 |
90 |
56 |
25 |
- |
- |
|
