Product Details
Applications
※ For water supply from wells or reservoirs
※ For domestic use,for civil and industrial applications
※ For garden and irrigation
Motor and pump
※ Rewindable motor
※ Single-phase:220V-240V/50HZ
※ Three-phase:380V-415V/50HZ
※ Single phase motor with built-in capacitor
※ Curve tolerance according to ISO 9906
Options on request
※ Special mechanical seal
※ Other voltages or frequency 60 HZ
Operating conditions
※ Maximum fluid temperature up to +40℃.
※ Maximum sand content:3%.
※ Maximum immersion:50m.
※ Minimum well diameter:5".

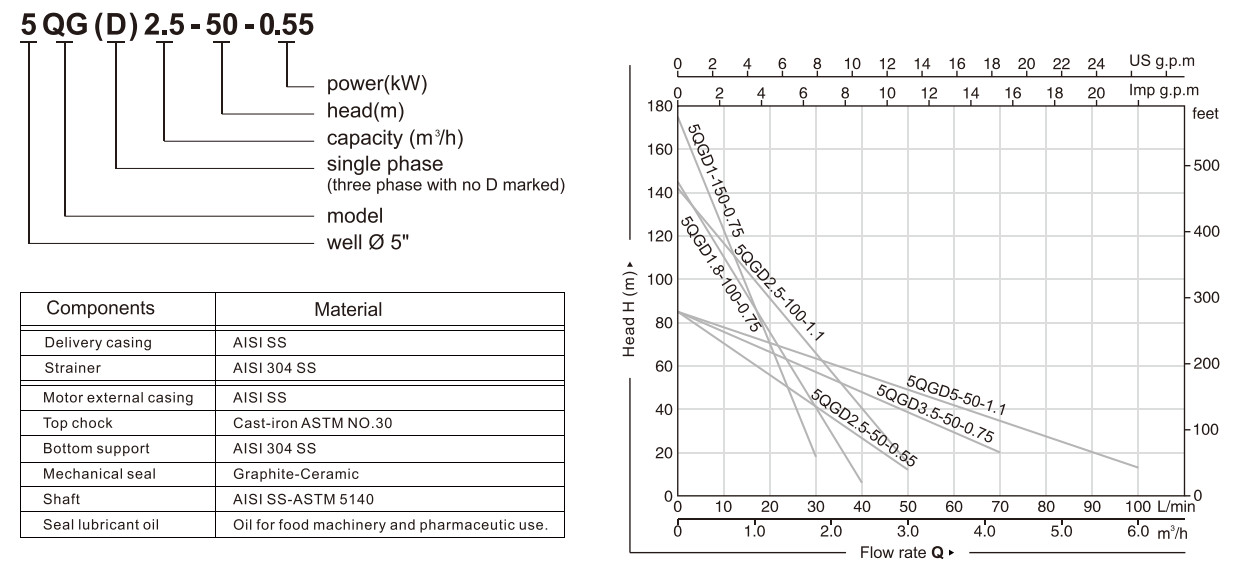

Performance data
|
50HZ n≈2850 r/min |
||||||||||||||||
|
MODEL |
POWER |
DN |
DELIVERY |
|||||||||||||
|
Single-phase |
Three-phase |
KW |
HP |
inch |
Q(m³/h) |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3.0 |
3.6 |
4.2 |
4.8 |
5.4 |
6.0 |
|
Q(l/min) |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
|||||
|
5QGD2.5-50-0.55 |
- |
0.55 |
0.75 |
1" |
H(m) |
85 |
71 |
56 |
42 |
27 |
12 |
- |
- |
- |
- |
一 |
|
5QGD1-150-0.75 |
5QGI-150-0.75 |
0.75 |
1 |
1" |
175 |
123 |
70 |
18 |
- |
- |
- |
- |
- |
- |
- |
|
|
5QGD1.8-100-0.75 |
5QGI.8-100-0.75 |
0.75 |
1 |
1" |
145 |
110 |
76 |
41 |
6 |
- |
- |
- |
- |
- |
- |
|
|
5QGD3.5-50-0.75 |
5QG3.5-50-0.75 |
0.75 |
1 |
1" |
85 |
76 |
66 |
57 |
48 |
39 |
29 |
20 |
- |
- |
- |
|
|
5QGD2.5-100-1.1 |
5QG2.5-100-1.1 |
1.1 |
1.5 |
1" |
142 |
117 |
91 |
66 |
40 |
15 |
- |
- |
- |
- |
- |
|
|
5QGD5-50-1.1 |
5QG5-50-1.1 |
1.1 |
1.5 |
1" |
85 |
78 |
71 |
63 |
56 |
49 |
42 |
35 |
27 |
20 |
13 |
|
|
5QGD1.5-150-1.5 |
5QG1.5-150-1.5 |
1.5 |
2 |
1" |
210 |
193 |
158 |
114 |
60 |
50 |
45 |
35 |
30 |
25 |
20 |
|
|
5QGD1.5-200-2.2 |
5QG1.5-200-2.2 |
2.2 |
3 |
1" |
280 |
223 |
178 |
134 |
80 |
60 |
52 |
47 |
39 |
28 |
22 |
|
