Product Details
Applications
※ For water supply from wells or reservoirs
※ For domestic use,for civil and industrial applications
※ For garden and irrigation
Motor and pump
※ Rewindable motor
※ Single-phase:220V-240V/50HZ
※ Three-phase:380V-415V/50HZ
※ Single phase motor with built-in capacitor
※ Curve tolerance according to ISO 9906
Options on request
※ Special mechanical seal
※ Other voltages or frequency 60 HZ
Operating conditions
※ Maximum fluid temperature up to +40℃.
※ Maximum sand content:0.15%.
※ Maximum immersion:50m.
※ 3NK Minimum well diameter:3".
※ 4NK Minimum well diameter:4".

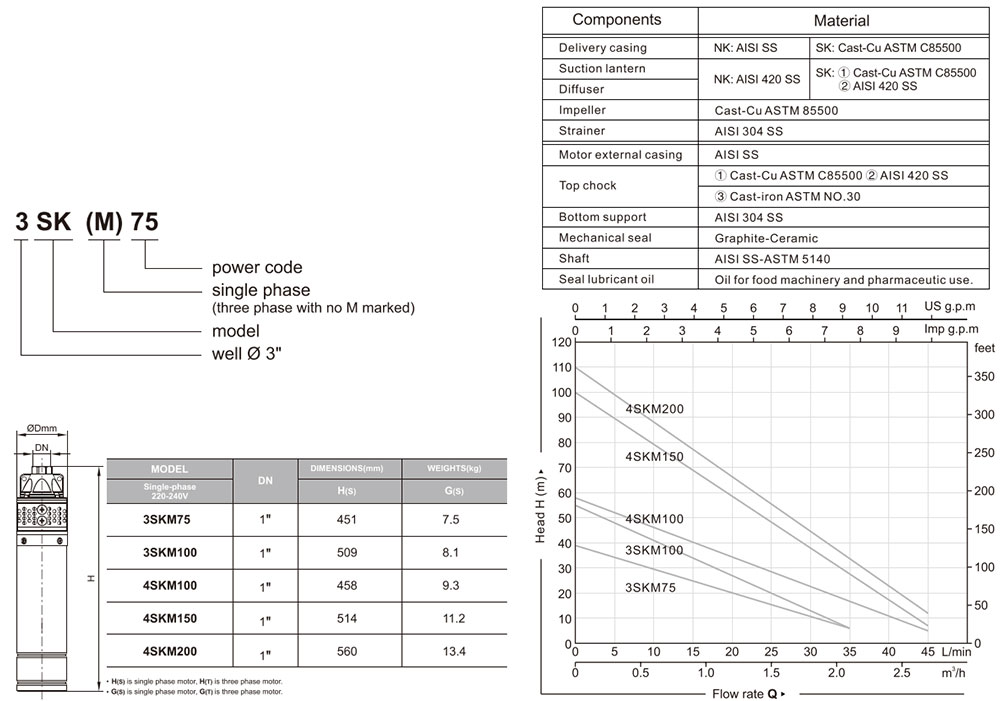

Performance data
|
50HZ n≈2850 r/min |
|||||||||||||
|
MODEL |
POWER |
DELIVERY n≈2850 r/min |
|||||||||||
|
Single-phase |
KW |
HP |
Q(m³/h) |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
|
Q(l/min) |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
|||
|
3SKM75 |
0.55 |
0.75 |
H(m) |
39 |
34 |
30 |
25 |
20 |
15 |
11 |
6 |
- |
- |
|
3SKM100 |
0.75 |
1 |
55 |
48 |
41 |
34 |
27 |
20 |
13 |
6 |
- |
- |
|
|
4SKM100 |
0.75 |
1 |
58 |
52 |
46 |
40 |
34 |
28 |
22 |
16 |
10 |
5 |
|
|
4SKM150 |
1.1 |
1.5 |
100 |
89 |
79 |
69 |
59 |
48 |
38 |
28 |
17 |
7 |
|
|
4SKM200 |
1.5 |
2 |
110 |
99 |
88 |
78 |
67 |
56 |
45 |
34 |
23 |
12 |
|
