Product Details
Application

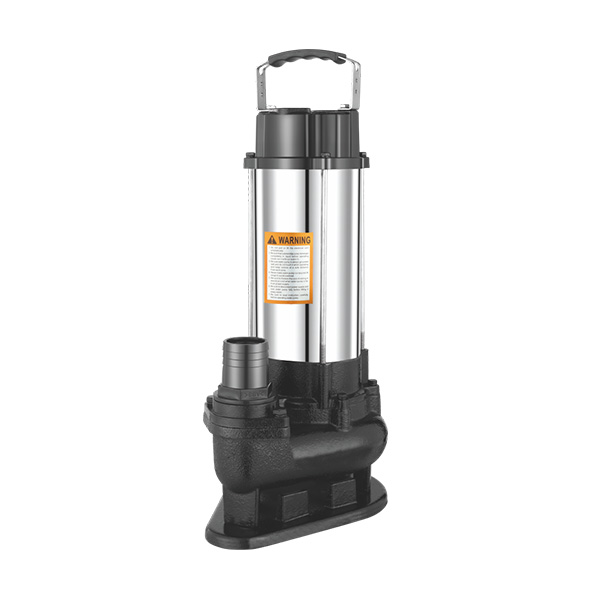

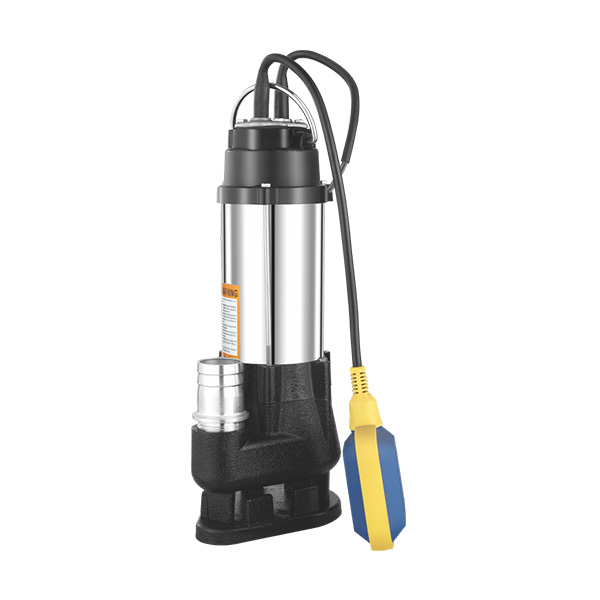

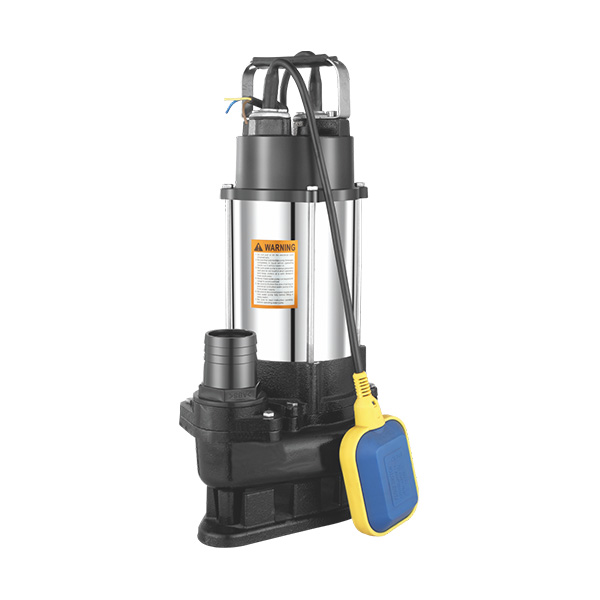

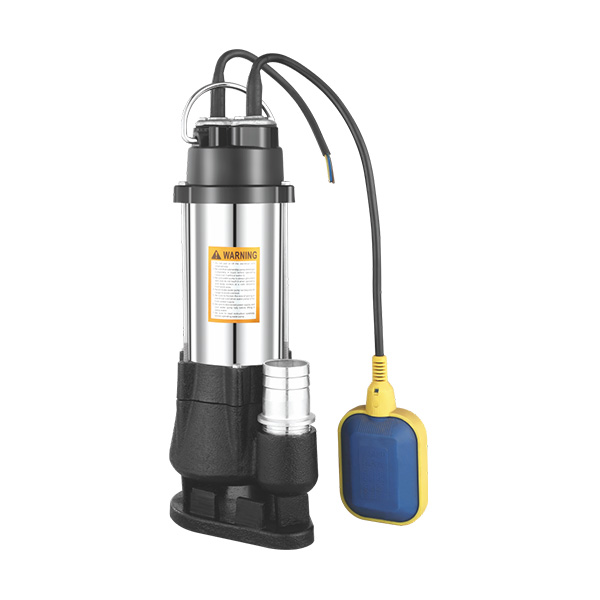

V series submersible pump can be fixed with an automaticfloat switch to protect the pump against dry working andsave energy.The pump body is Stainless steel can longerthe service life.
They are pumping clean water,liquid with solids-max.diameter of 15mm,which are not chemically aggressive tothe pump components,and should be installed in anenclosed environment,at least sheltered from inclementweather.
Motor
※Two-pole induction motor(n=2850r.p.m)
※Insulation Class B
※Protection IP68
※Continuous service S1
※Thermal protector for single phase
※Single-phase 220V/50Hz,60Hz if request
Three-phase 380V/50Hz,60Hz if request

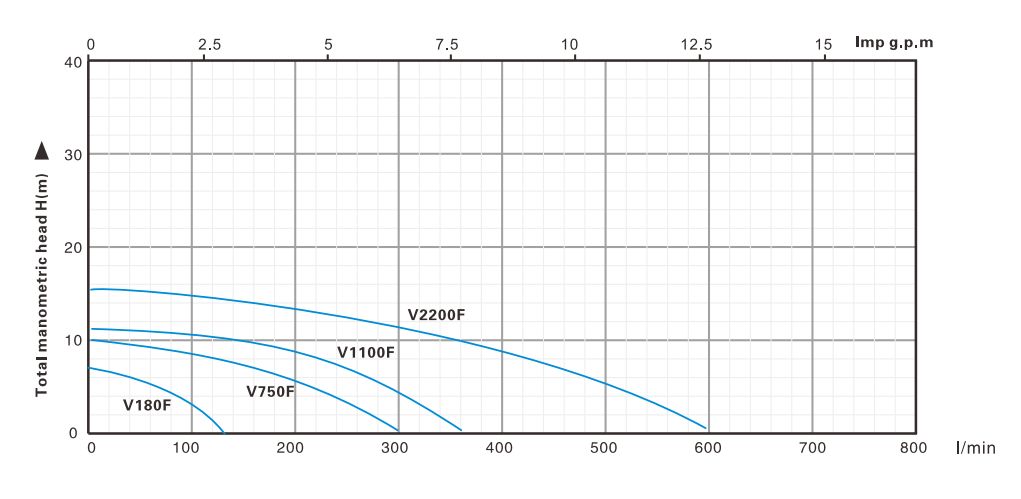

Performance chart at n=2850rpm
Technical parameters
|
MODEL |
Power |
Voltage |
Max.Flow |
Max Head |
Outlet |
|
|
kW |
HP |
|||||
|
V180(F) |
0.18 |
0.25 |
220/50Hz |
133 |
7.0 |
40/32/25 |
|
V250(F) |
0.25 |
1.33 |
220/50Hz |
130 |
7.0 |
40/32/25 |
|
V450(F) |
0.45 |
1.6 |
220/50Hz |
200 |
8.5 |
50 |
|
V750(F) |
0.75 |
1.0 |
220/50Hz |
300 |
10 |
50 |
|
V1100(F) |
1.1 |
1.5 |
220/50Hz |
360 |
11 |
50 |
|
V1100D(F) |
1.1 |
1.5 |
220/50Hz |
290 |
11 |
50 |
|
V1300D(F) |
1.3 |
1.75 |
220/50Hz |
310 |
13 |
50 |
|
V1500(F) |
1.5 |
2.0 |
220/50Hz |
600 |
14 |
80 |
|
V2200(F) |
2.2 |
3.0 |
220/50Hz |
600 |
15 |
80 |
