Product Details
Application

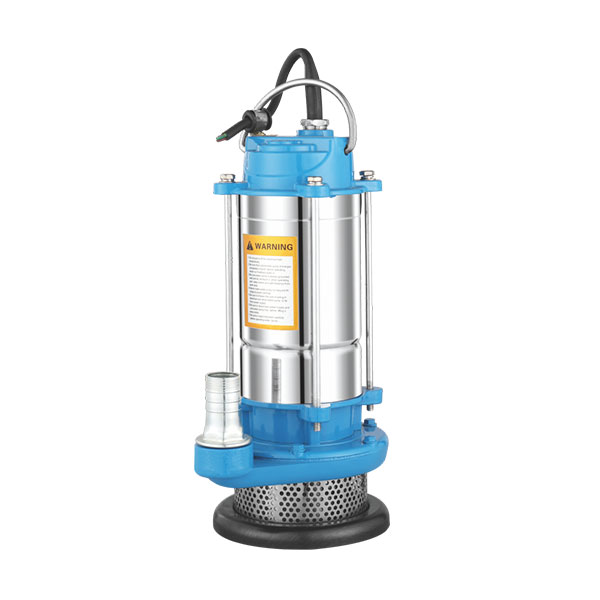

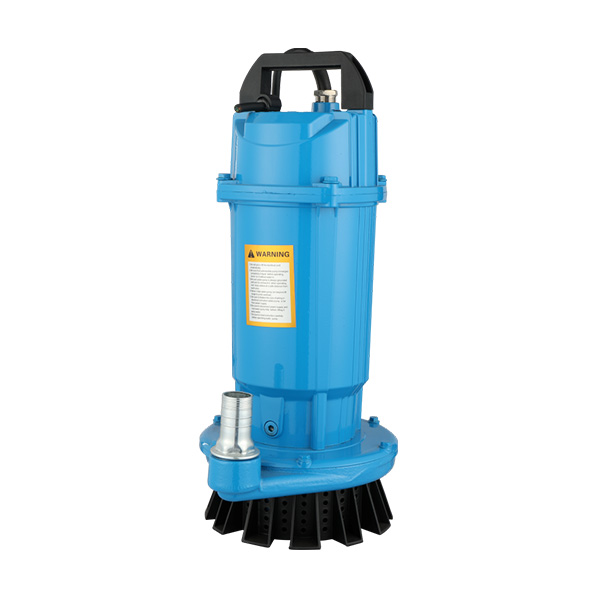

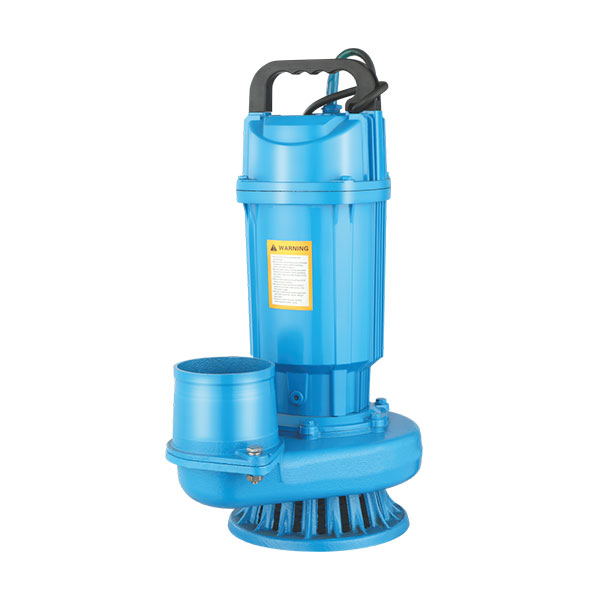

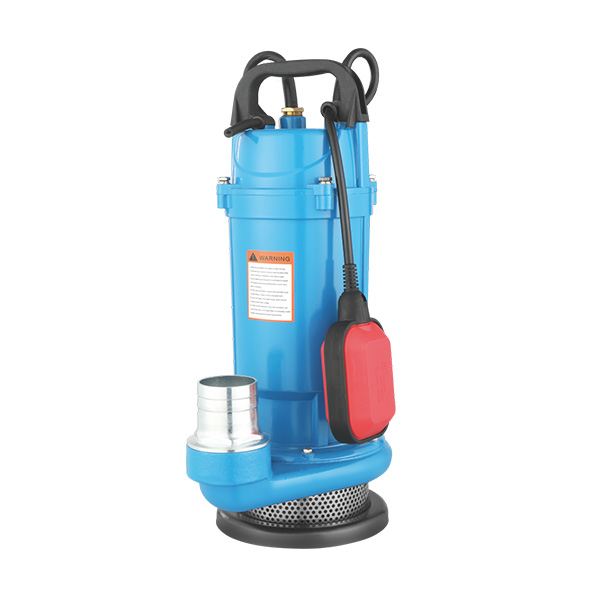

QDX and QX submersible pumpsare economical for domestio use with small size.The centrifugalimpeller and vortex structure make the pump have good performance. Thedouble-layer mechanical seal and "O"ring oil-proof washer assure the quality of the sealing.
They are pumping clean water which are not chemicallyaggressive to the pump components,and should beinstalled in an enclosed enyironment,at least shelteredfrominclement weather.
Motor
※Two-pole induction motor(n=2850r.p.m)
※Insulation Class B
※Protection IP68
※Continuous service S1
※Thermalprotectorfor single phase
※Single-phase 220V50Hz,60Hzif request
Three-phase 380V/50Hz,60Hzif request
Operatingconditions
※5m maximum immersion depth
※Liquid temperature up to 35℃
※Maximumambient temperature 40℃

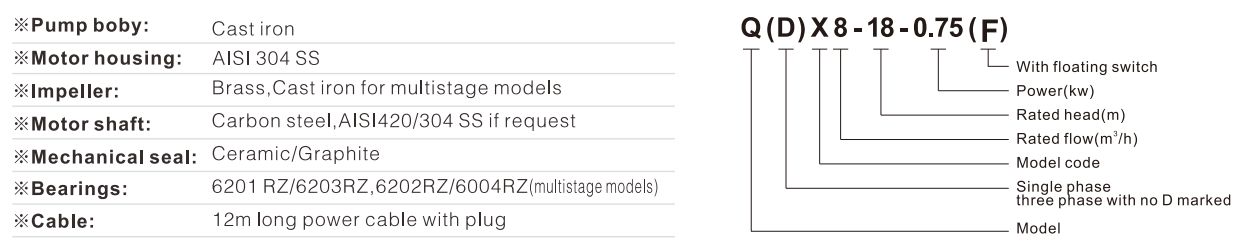

Component Construction

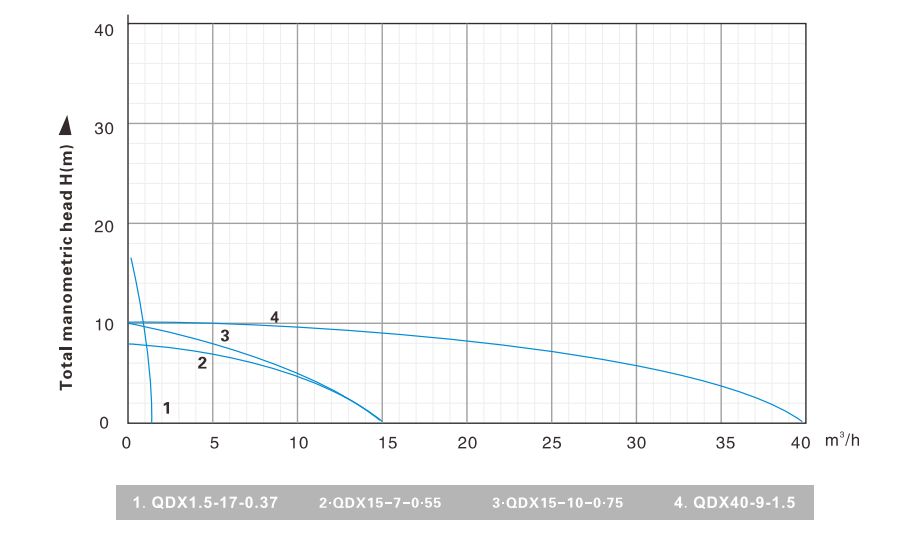

PERFORMANCE CHART AT n=2850RPM
Technical parameters
|
MODEL |
POWER |
Flow |
Head |
Outlet |
|
|
Single-Phase |
KW |
HP |
|||
|
QDX1.5-12-0.25 |
0.25 |
0.33 |
1.5 |
12 |
1" |
|
QDX1.5-17-0.37 |
0.37 |
0.5 |
1.5 |
17 |
1" |
|
QDX1.5-25-0.55 |
0.55 |
0.75 |
1.5 |
25 |
1" |
|
QDX3-18-0.55 |
0.55 |
0.75 |
3 |
18 |
1.25" |
|
QDX10-12-0.55 |
0.55 |
0.75 |
10 |
12 |
1.5" |
|
QDX15-7-0.55 |
0.55 |
0.75 |
15 |
7 |
2" |
|
QDX1.5-32-0.75 |
0.75 |
1 |
1.5 |
32 |
1" |
|
QDX3-24-0.75 |
0.75 |
1 |
3 |
24 |
1.25" |
|
QDX8-18-0.75 |
0.75 |
1 |
8 |
18 |
1.5" |
|
QDX10-16-0.75 |
0.75 |
1 |
10 |
16 |
2" |
|
QDX15-10-0.75 |
0.75 |
1 |
15 |
10 |
2.5" |
|
QDX25-6-0.75 |
0.75 |
1 |
25 |
6 |
3" |
|
QDX30-6-0.75 |
0.75 |
1 |
30 |
6 |
3" |
|
QDX3-30-1.1 |
1.1 |
1.5 |
3 |
30 |
1" |
|
QDX14-16-1.1 |
1.1 |
1.5 |
14 |
16 |
2" |
|
QDX15-14-1.1 |
1.1 |
1.5 |
15 |
14 |
2.5" |
|
QDX40-6-1.1 |
1.1 |
1.5 |
40 |
6 |
3" |
|
QDX25-12-1.5 |
1.5 |
2 |
25 |
12 |
2.5" |
|
QDX40-9-1.5 |
1.5 |
2 |
40 |
9 |
3" |
|
QDX50-7-1.5 |
1.5 |
2 |
50 |
7 |
4" |
|
QDX65-7-2.2 |
2.2 |
3 |
65 |
7 |
4" |
