Product Details
Application

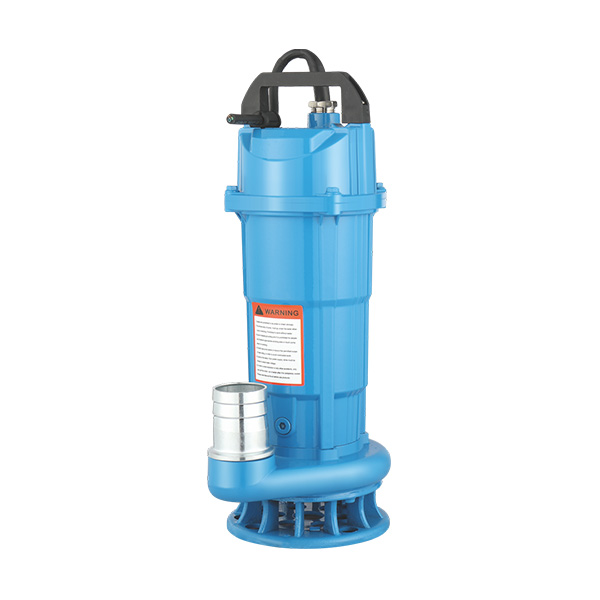

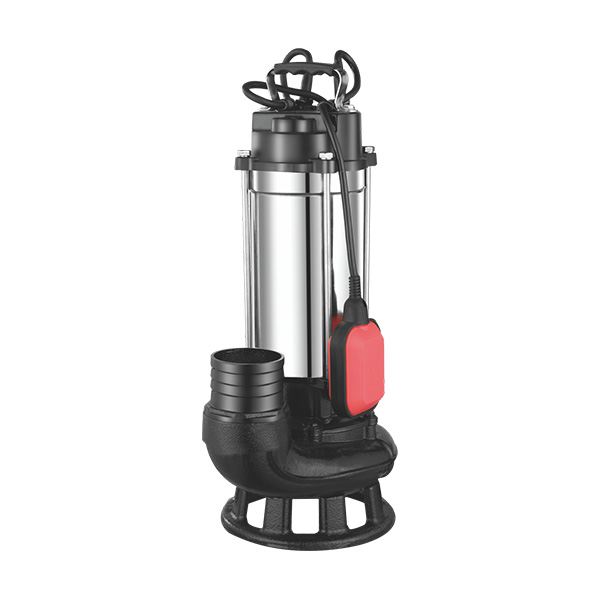

WQD series submersible pump is designed for dirty/sewage water,can be widely used in agriculture,architecture,mine,environment protection,industry and building construction.They are fit for dredging,carrying slurry,mortar,daily sanitary waste water,and sewage contain papers,mud,sand and other solid particles.
Motor
※Two-pole induction motor(n=2850r.p.m)
※Insulation Class B
※Protection IP68
※Continuous service S1
※Thermal protector for single phase
※Single-phase 220V/50Hz,60Hzif request
Three-phase 380V/50Hz,60Hz if request
Operating conditions
※5m maximum immersion depth
※Liquid temperatureup to 35℃
※Maximum ambient temperature 40℃

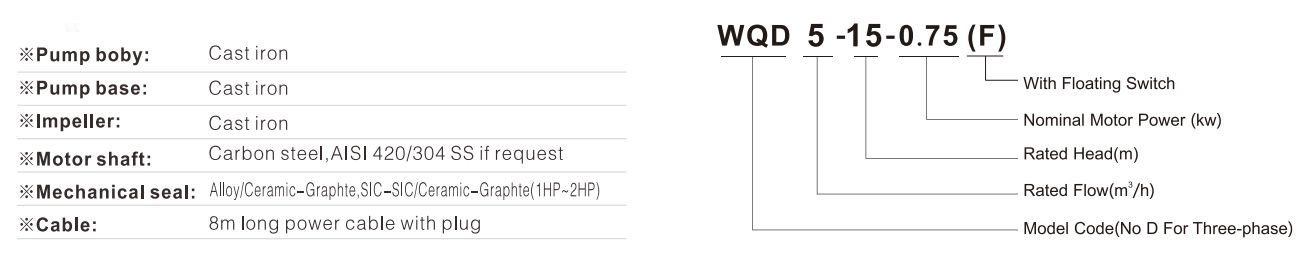

Component construction

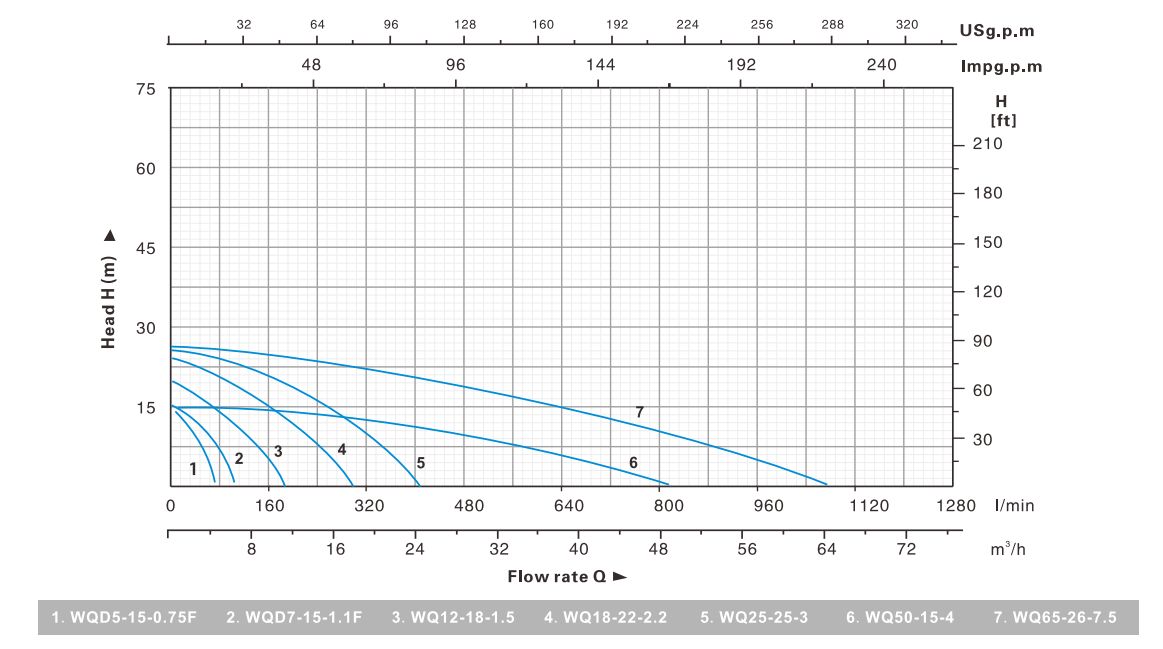

Performance chart at n=2850rpm
Technical parameters
|
MODEL |
POWEF |
SPEED |
VOLT. |
FREQ |
Q.RATE |
H.RATE |
OUTLET |
||
|
kW |
HP |
(R/min) |
(V) |
(Hz) |
(m/h) |
(l/min) |
(m) |
Inch) |
|
|
WQD5-15-0.75F |
0.75 |
1 |
2850 |
220 |
50 |
5 |
83 |
15 |
2" |
|
WQ5-15-0.75 |
0.75 |
1 |
2850 |
380 |
50 |
5 |
83 |
15 |
2" |
|
WQD7-15-1.1F |
1.1 |
1.5 |
2850 |
220 |
50 |
7 |
116 |
15 |
2" |
|
WQ7-15-1.1 |
1.1 |
1.5 |
2850 |
380 |
50 |
7 |
116 |
15 |
2" |
|
WQ12-18-1.5 |
1.5 |
2 |
2850 |
380 |
50 |
12 |
200 |
18 |
2" |
|
WQ10-34-2.2 |
2.2 |
3 |
2850 |
380 |
50 |
10 |
166 |
34 |
2" |
|
WQ15-28-2.2 |
2.2 |
3 |
2850 |
380 |
50 |
15 |
250 |
28 |
2" |
|
WQ18-22-2.2 |
2.2 |
3 |
2850 |
380 |
50 |
18 |
300 |
22 |
22" |
|
WQ10-44-3 |
3 |
4 |
2850 |
380 |
50 |
10 |
166 |
44 |
2" |
|
WQ16-32-3 |
3 |
4 |
2850 |
380 |
50 |
16 |
266 |
32 |
2" |
|
WQ25-25-3 |
3 |
4 |
2850 |
380 |
50 |
25 |
416 |
25 |
22" |
|
WQ40-15-3 |
3 |
4 |
2850 |
380 |
50 |
40 |
666 |
15 |
3" |
|
WQ15-45-4 |
4 |
5.5 |
2850 |
380 |
50 |
15 |
250 |
45 |
2" |
|
WQ30-26-4 |
4 |
5.5 |
2850 |
380 |
50 |
30 |
500 |
26 |
3" |
|
WQ50-15-4 |
4 |
5.5 |
2850 |
380 |
50 |
50 |
833 |
15 |
4" |
|
WQ15-55-5.5 |
5.5 |
7.5 |
2850 |
380 |
50 |
15 |
250 |
55 |
2" |
|
WQ25-40-5.5 |
5.5 |
7.5 |
2850 |
380 |
50 |
25 |
416 |
40 |
2" |
|
WQ30-30-5.5 |
5.5 |
7.5 |
2850 |
380 |
50 |
30 |
500 |
30 |
3" |
|
WQ48-22-5.5 |
5.5 |
7.5 |
2850 |
380 |
50 |
48 |
800 |
22 |
4" |
|
WQ20-60/2-7.5 |
7.5 |
10 |
2850 |
380 |
50 |
20 |
333 |
60 |
2" |
|
WQ65-26-7.5 |
7.5 |
10 |
2850 |
380 |
50 |
65 |
1083 |
26 |
4" |
